In-line Moisture Content MEASURING SYSTEM FOR WOOD

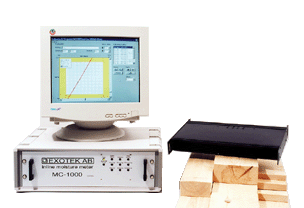

MC-1000 - in line system

- non-contact moisture measurement in wood

The MC-1000 is a powerful In-line moisture content measuring system with non-contact and continuous determination of the moisture content in all kinds of wood materials - Plywood, MDF board and veneer.

More accurate and more frequent moisture control must be performed due to increased request for wood with the ?right? moisture content. With in-line moisture meters installed in sorting lines, cutting lines, etc, the moisture content is measured in all pieces of wood.

MC-1000 offers:

PC/Windows interface
Powerful and flexible calibration tools
Measuring accuracy
User friendly operating
Easy to adapt to end user applications
Easy installation
Easy to take into running condition
1-12 measuring sensors in one system
11 integrated functions for alarm, sorting, colouring, etc.

TECHNICAL SPECIFICATION	MC-1000
MEASURING RANGES	0 -30%, 0 -50%, 0 -100%, 0 -200%
SCANNING DEPTH	up to 400 mm
NUMBER OF SENSORS IN ONE SYSTEM	1 to 12 MC-sensors
TRANSPORTING SPEED, SIDEWAYS	max 10 pcs/sec
TRANSPORTING SPEED, LINGITUDINAL	max 600 m/min
MEASURING SPEED	1 ms, 1.000 measurements/sec
ANALOGUE OUTPUT	0-20mA, 4-20mA, 0-1VDC, 1-10VDC
SERIAL COMMUNICATION	RS232 to host with two-way comm.
OPERATING TEMPERATURE	+10 to +70 oC
POWER SUPPLY	230/115 VAC +/- 10%
DESKTOP MODEL (H x W x D)	125 x 435 x 350 mm
