wood and building materials

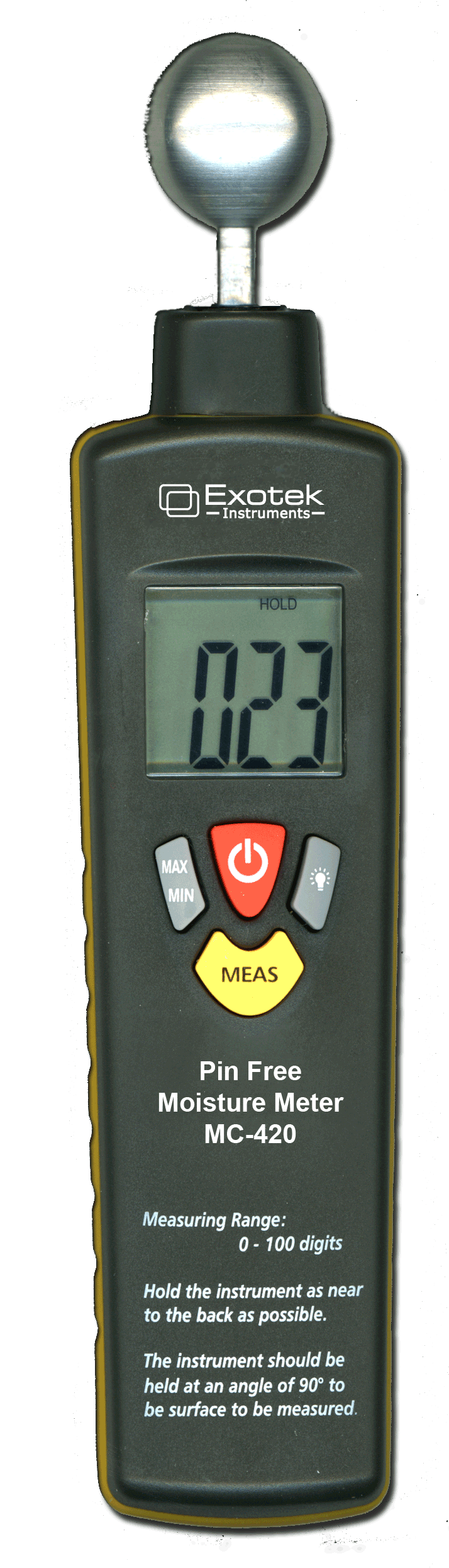

MC-420
Low Cost Moisture Detector - Pin-free
The MC-420 allows moisture detections in wood down to a depth of approx. 20-40 mm. It is designed for quick-response detection of moisture content in wood and building materials as well as locating wet areas in floors, roofs and walls made of homogeneous material.

It is even able to detect moisture behind ceramic tiles or behind and under various floor or wall coverings. Simply place device on top of the surface to be examined – no injection into the object required!
FEATURES:
  • Pin-less & non-destructive: Capacitance measurement using a high frequency dielectric field
  • Used on different materials such as wood, concrete, cement wash floor, brick, plaster, gypsum board, clinker and clay floor tiles, sandstone, marble, etc.
  • Quickly indicates the moisture content of materials
  • Moisture detection down to a depth of approx. 20-40 mm
  • Low battery indication
  • Impact resistant ABS housing
  • Complete with 9V battery

MC-420 can be used for:
  • Detection of moisture in wood and other building materials
  • Detection of leakage
  • Finding electrical cables and reinforcement bars
TECHNICAL SPECIFICATION MC-500
MEASURING METHOD Dielectric constant measurement
MEASURING RANGE-WOOD 0–100 digits (Reference Scale)
MEASURING RANGE-BUILDING MATERIAL 0–100 digits (Reference Scale)
SCANNING DEPTH APPROX. 20-40 mm
AUTOMATIC SWITCH OFF Yes
LOW BATTERY WARNING Yes
MAX, MIN AND HOLD FUNCTION Yes
BACK LIGHT DISPLAY Yes
OPERATING TEMPERATURE 0 to +50°C
DISPLAY 3-digit LCD-display
RESOLUTION 0,1%
HOUSING MATERIAL ABS
SENSOR Metal Sphereoid
POWER SUPPLY 9V alkaline battery
DIMENSIONS (h x w x d) 180 x 45 x 35 mm
WEIGHT (INCL. BATTERY) 180 g
WARRANTY 1 year
Moisture Indicator Print Datasheet (pdf)
